WORLD-CLASS ANODIZING AND METAL FINISHING SERVICES

Aluminum anodizing for automotive, marine, medical, military, aerospace, firearms, high tech and more
Sulfuric · Hardcoat · Manganese Phosphating-Exceptional Results

Sulfuric · Hardcoat · Manganese Phosphating

Exceptional Results

Contact Us

Our Principles

“Through the development of perfect processes, documentation and training, and strict adherence to those processes and guidelines, we will exceed our customer’s expectations, and consistently produce exceptional results.”

    • Contact Us

    Phone

    +1 (832) 554 2453

    Email

    Email Us

    Form

    Fill Out The Form
    2657 WINDMILL PKWY #353, HENDERSON, NV 89074

    SERVICES

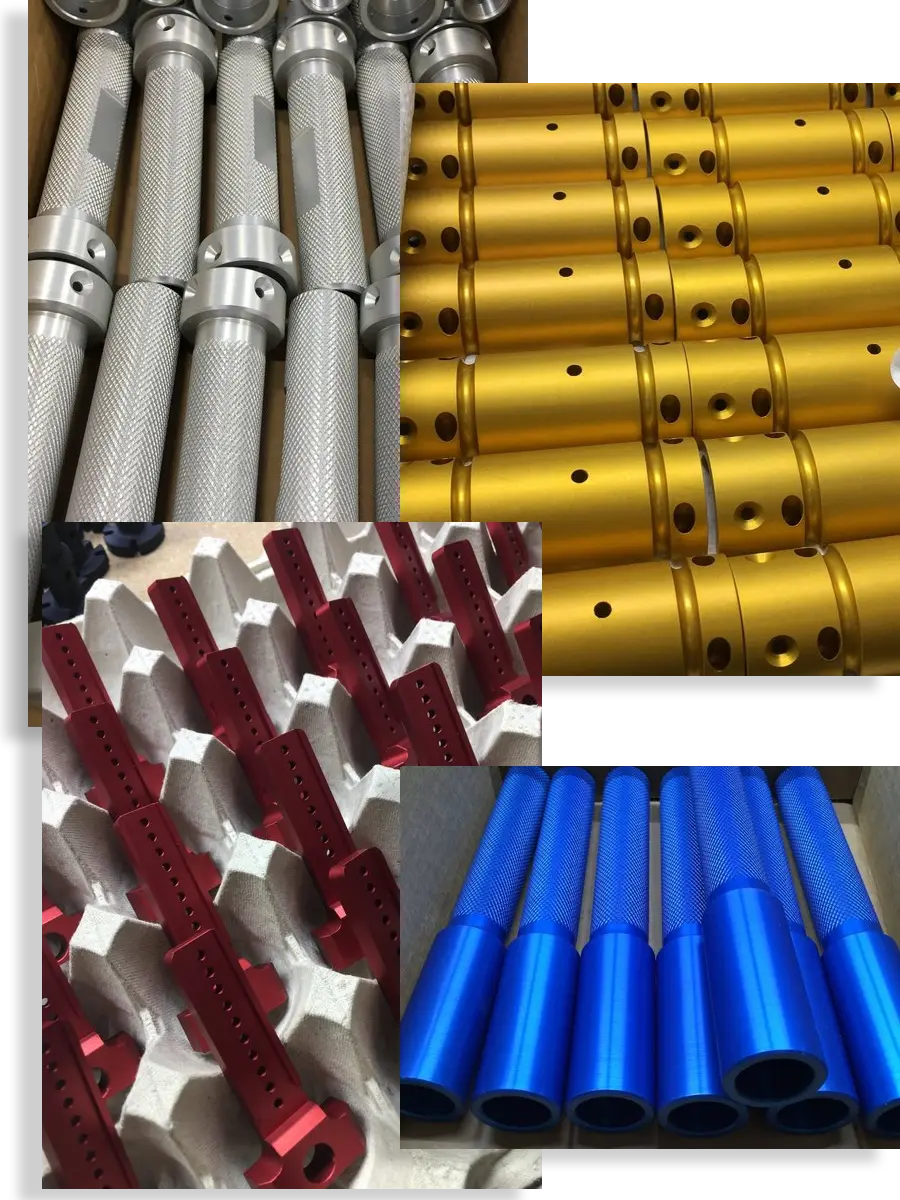

    Anodizing - Type II

    Clear Anodizing
    Anodizing Online Clear Anodize process is ideal for providing decorative qualities to parts. Proper formation of aluminum oxide coatings provides aluminum with a natural decorative appearance and increased resistance to corrosion and abrasion.

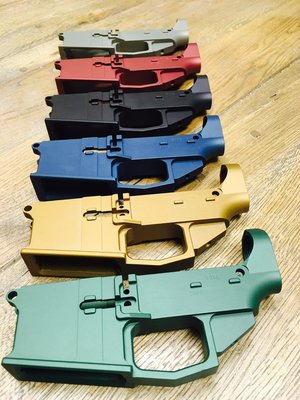

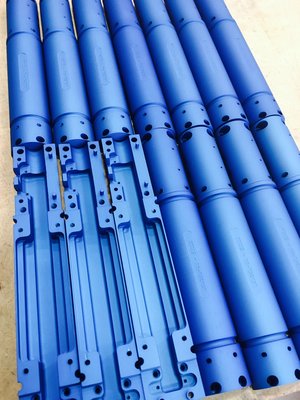

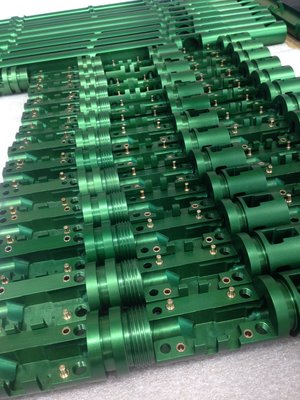

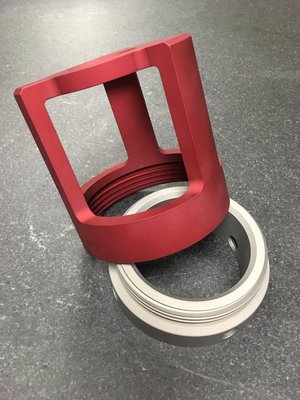

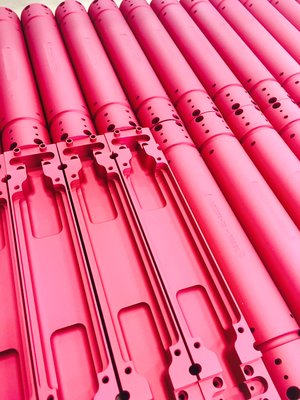

    Dyed Anodizing
    Anodizing Online Dyed Anodize process provides a rich, vibrant, permanent color finish. Aluminum can be anodized and dyed to match a given decor or to assimilate a particular metal.

    Standard Specifications

    MIL-A-8625 Type II (Class 1 & 2)
    AMS 2471
    RoHS, REACH, ELV & WEEE Compliant

    Performance Benefits

    Wear Resistance
    Corrosion Resistance
    Heat Dissipation
    Dielectric Properties
    Bonding
    Improved Aesthetics

    Receptive Metals

    Aluminum Alloy

    Thickness

    .0001-.001”

    CONTACT US

    SERVICES

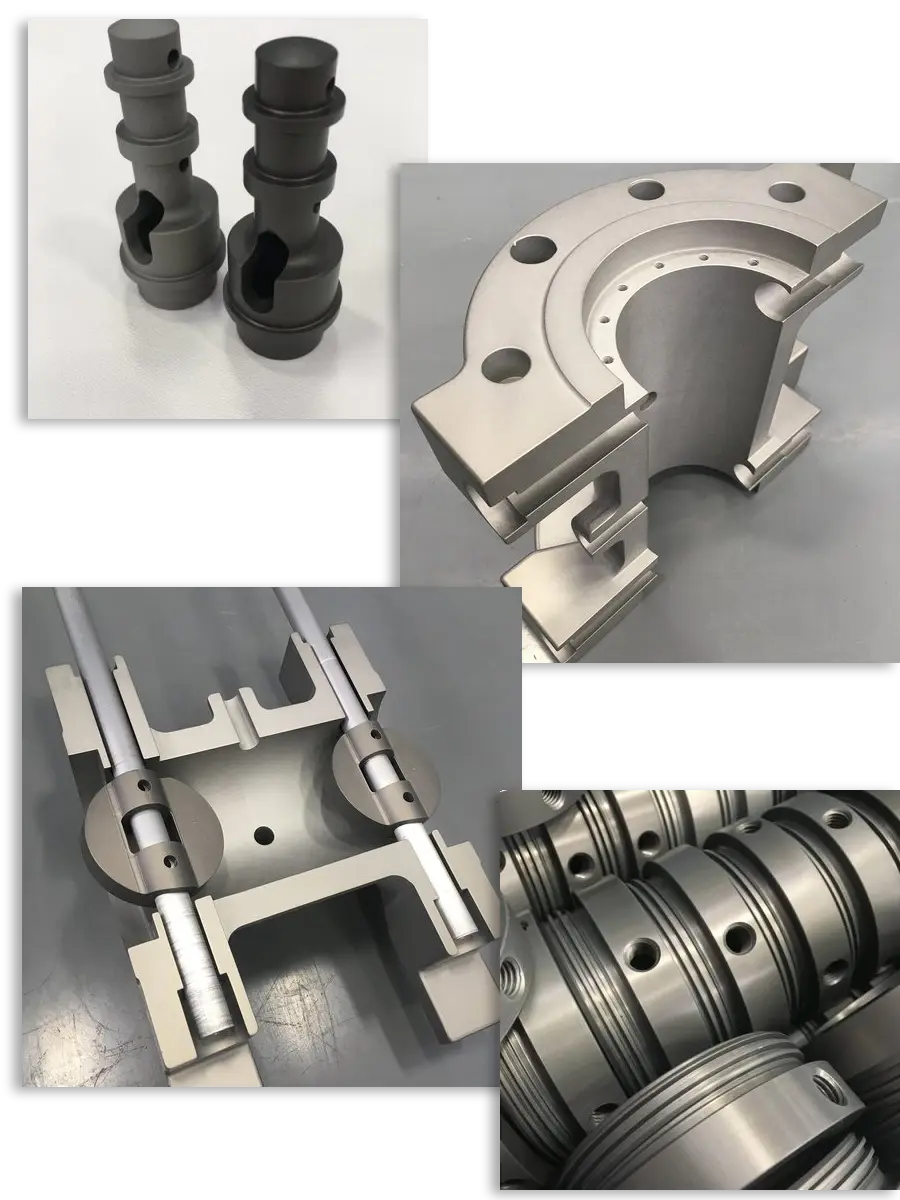

    Anodizing - Type III Hardcoat

    Anodizing Online offers aluminum hardcoat anodizing (Type III) for dyed and non-dyed parts at our state-of-the-art facility in Houston, Texas. Hardcoat aluminum anodizing provides a surface that is more wear resistant and has a smoother and harder finish than standard anodizing. Please note that not all colors are well suited for use with a Type III anodic layer due to the smaller coating pore size and darker color (typically gray-black or gray-bronze).

    The typical thickness produced by engineered anodizing MIL-A-8625 (Type III) is 0.0005”- 0.002”, but the coating thickness can be controlled with exceptional accuracy. The coating created by Type III anodizing penetrates 50% of the surface, with the remaining 50% of the coating building up on the surface. Since hard anodizing alters surface thickness, it’s important to note that the process will affect the final dimensions of parts with tight tolerances.

    After an aluminum part has been hardcoat anodized, there is an option to have it sealed. If the main function of the application is to obtain the maximum degree of abrasion or wear resistance, the coating should not be sealed. If the main function of the application is for corrosion resistance, and reduced abrasion resistance is not an issue, sealing is advised.

    Contact us today or request a quote for anodized aluminum parts.

    Standard Specifications

    MIL-A-8625 Type III (Class 1 & 2)
    AMS 2471
    RoHS, REACH, ELV & WEEE Compliant

    Performance Benefits

    Superior Wear Resistance
    Excellent Corrosion Resistance
    Heat Dissipation
    Dielectric Properties (Electrical Insulation)
    Bonding

    Receptive Metals

    Aluminum Alloy

    Thickness

    .0005-.003”

    CONTACT US

    SERVICES

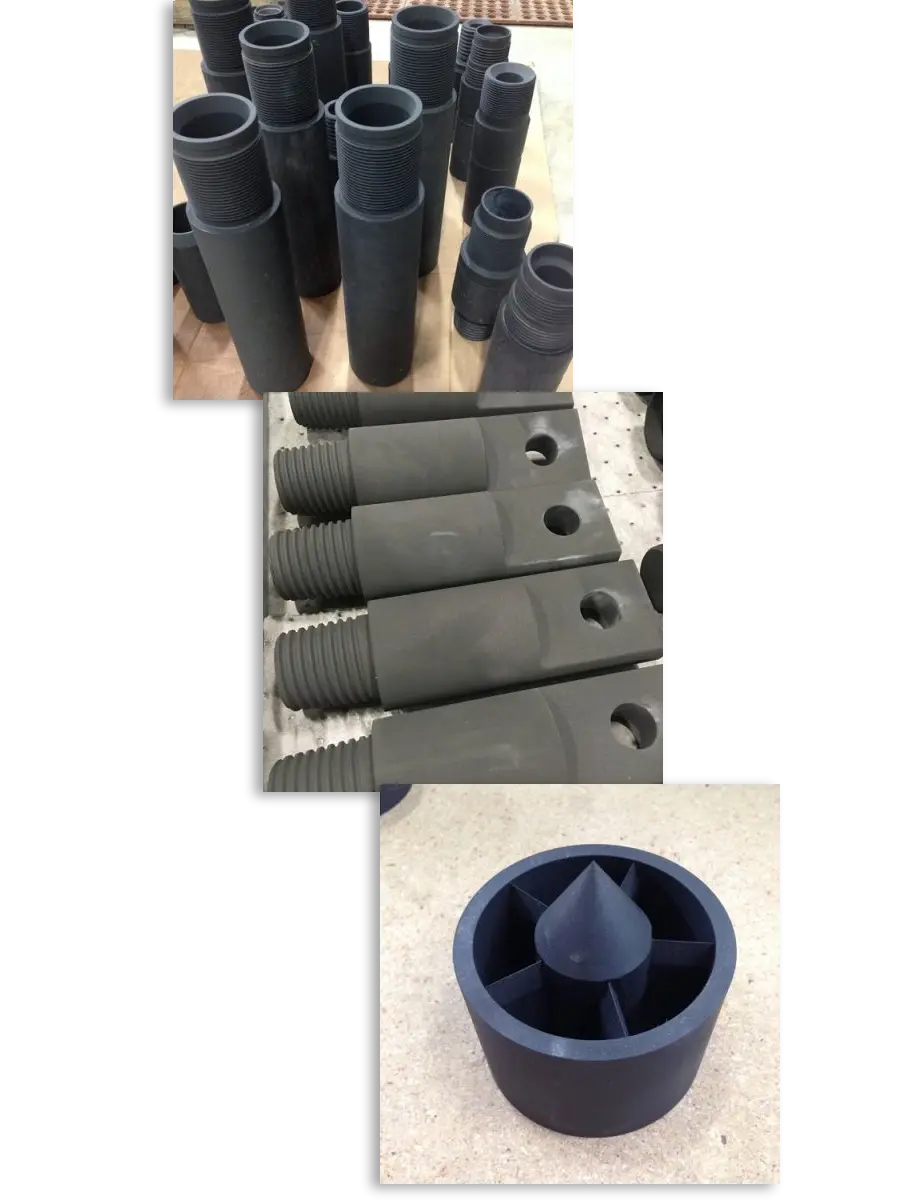

    Manganese Phosphating

    Manganese Phosphate is a treatment that utilizes manganese salt, phosphoric acid and an accelerator, all of which are applied at very high temperatures. This conversion coating process involves the dissolution of the base metal, and subsequently forms part of the actual coating — offering excellent wear resistance.

    Houston Anodizing’s Manganese Phosphate process is widely used in applications with part to part contact, like gears, and in applications utilizing extreme torque values or requiring multiple rundowns, like bolts. This is due to the Manganese natural crystal structure that is very durable and will not fracture. Due to this structure, Manganese Phosphate is an ideal coating for break in processes as well.

    Standard Specifications

    PS8890 – Method A
    GM4277M
    GM9984090
    TES1000
    TES1007
    PS119.0
    RoHs, REACH, ELV & WEEE Compliant

    Performance Benefits

    Corrosion Resistance
    Extremely durable in part to part contact
    Handles extreme torque values
    Excels in multiple rundown applications
    Provides a base for subsequent coatings

    Receptive Metals

    Steel
